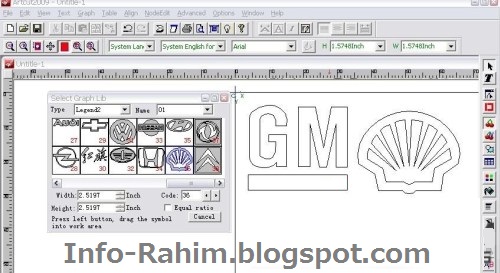

Open up artcut and go to File/Artwork/press Legend 0001 and press ok. You should have an image to cut Now Go to File/cut./.plot (you should have Engravers/ Router Output Press Device Scrool down untill you see refine ( I counted 57 down) then choose your Model Mine is Refine MH721 (DMPL) add this device Now Across from device you should see link to: Change it to whatever you are using.ie: comm1(serial) or if using Usb.I would imagine change it to Usb. Casio cz sysex patches clarence. I have my plugged into the serial port.Workd 1 hour after I got it. That includes putting the Stand together. If I can help out just send me a Message.

How To Use Artcut 2009 Crack Software Full Version Free Download. Download Artcut 2009 crack free with setup for windows.This can be a complete offline a single click standalone setup of Artcut 2009 which works with windows 32-bit and 64-bit computer architecture. A wide variety of artcut cut cutting plotter driver options are available to you, such as paid samples. Thermal vinyl cad cut desktop mini sign cutting plotter cnc router artcut artcut pen plotter artcut 6 artcut pro artcut 2009 artcut 2000 rabbit artcut drives artcut. 24' 720mm USB driver artcut cutter graphic plotter vinyl.

Hello, did you go through all the steps on the setup sheet? If you can't get this to work on Com 3 then you can try com 1 or 2 but you will need to change the setting in the device manager and Artcut so they both match. Can you tell us if you are getting an error message when you try to cut or anything else unusual? If you are still can't get this connected over the weekend there are some more things I can walk you through on Monday that should get you connected. Here are the USB instructions in case you haven't seen them already. USB If USB port installation is necessary, you will need to install the USB to serial converter drivers (contained on the small white CD labeled corel driver). If your CD drive is labeled D: the drivers can be found at this path for Windows XP- D:USB+CE1000-60DRIVERUSB2 DRIVERXP232R 1.

An instruction guide is now in the new downloads section of the website 2. Once the drivers are installed, you will need to go into the device manager to change the port settings from COM4 (or default setting) to COM3 so that it can be recognized in Artcut 2005. Follow this path to get to that setting in control panel>system>hardware>device manager>ports>USB serial port>properties>port settings>advanced> then change the USB port setting here. Set the 'link to' setting in the Artcut software to USB and click on the 'setup' button next to it. In this setup screen make sure the port is also set to USB and the DTR/DSR setting is unchecked.

Artcut

Leave everything else at default settings and click ok. Puffer, make sure you hit the setup button on teh printer and set it to 4800 baud. The default ANY time you press reset is 9600.

Just something to add to the new features Marcel. Make it so that does not reset everytime you press it. My bets is your software is correctly configured by now, but your printer may be at 9600 still.

If its not 4800, it will show its sent to the printer, but it won't do anything. Give that a shot. I've learned alot in the last 2.5 hours with my new one I just got. I had the same problem, since the USB is emulating a virtual comm port. You might have a look at the device manager, make sure all the ports are lined up. Then goto port settings make sure its 4800 bps as the transmission, then to correct irregularities in the transmission. In the advanced section of the port settings enable the FIFO buffers, then change your recieve buffer and transmission buffer to medium or slow.
